Features

• High quality DC to AC pure sine wave.
• The main control chip adopts high-speed and stable MCU, intelligent control, real-time monitoring, AC output frequency is more accurate, and the work is more stable.
• With bipolar SPWM drive, the output sinusoidal waveform is more accurate and the inductive load capacity is stronger.
• Multiple protection functions: input low voltage shutdown protection, input high voltage shutdown protection, battery high and low voltage alarm, overload protection, output short circuit protection, overheating protection, input reverse protection.
• Automatic reset function: After input high voltage or low voltage shutdown, when the input voltage returns to normal, the inverter will automatically restore the output voltage.
• Soft start function, it is easier to run inductive and capacitive loads.
• Buzzer reminder device, once the protection of the inverter is triggered, the buzzer sounds an alarm to remind people.
• The aluminum casing is anodized, which not only has a beautiful appearance, but also has good heat dissipation performance, wear resistance, insulation, and durability.
• Dual intelligent temperature control fan to reduce unnecessary waste of battery power; When the internal temperature of the inverter is ≥45±5°C, the fan starts to work.

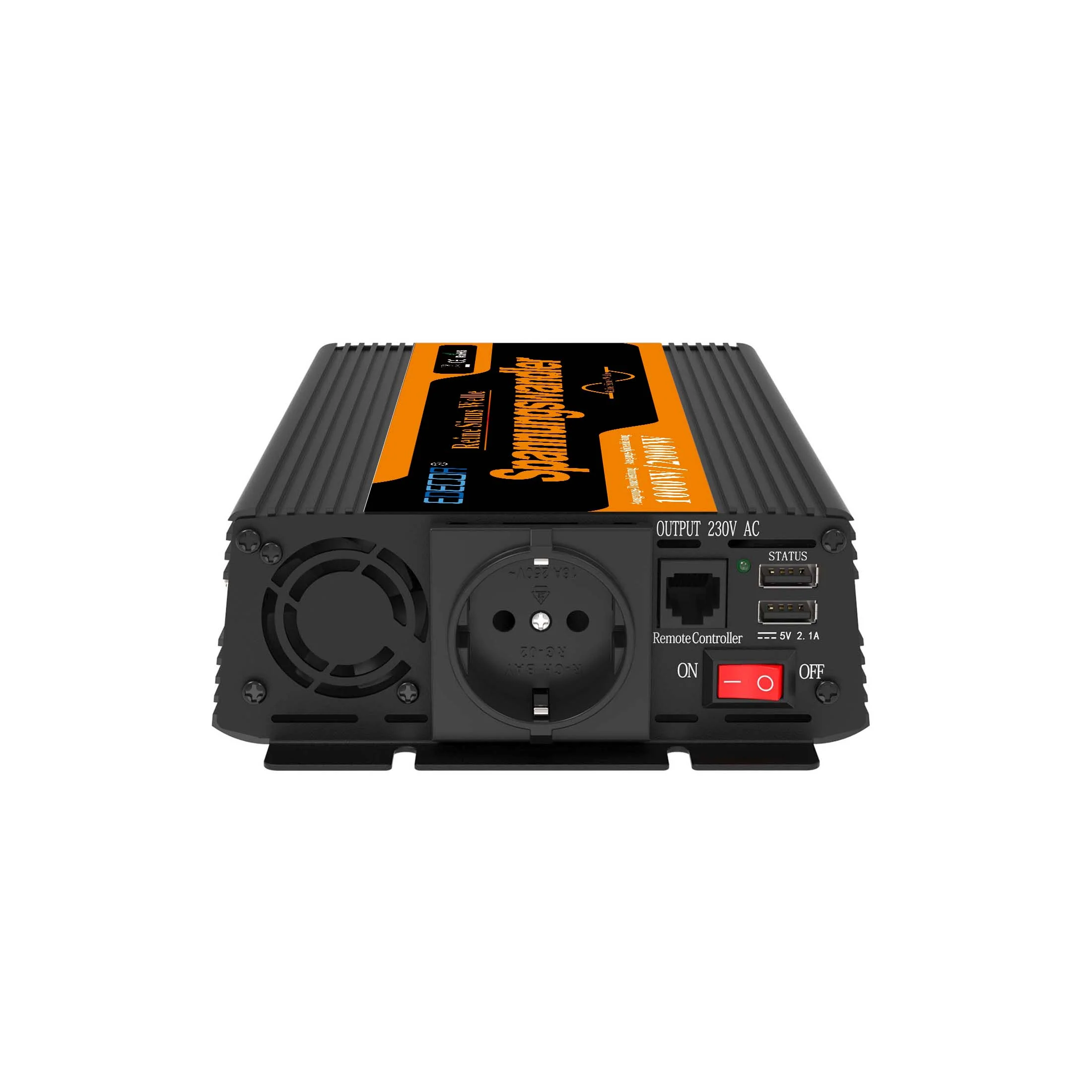

• Remote control function, can display battery power, battery low-voltage alarm, the switch button can turn on/off the inverter, the remote control port is standard RJ45, you can replace longer cable to increase remote control distance.
• Dual USB port, output voltage 5V, maximum current 2.1A, can charge mobile phones and tablets.
• Screw terminal. Pluggable plug for easy cable replacement.

Specification
