Features

• All in one inverter: DC 48V to AC 220V hybrid inverter, built-in MPPT solar charge controller, battery charger, compatible with a wide range of battery types, compatible with PV solar panel input, grid/generator input.
• lnverter can run without battery
• Dual output

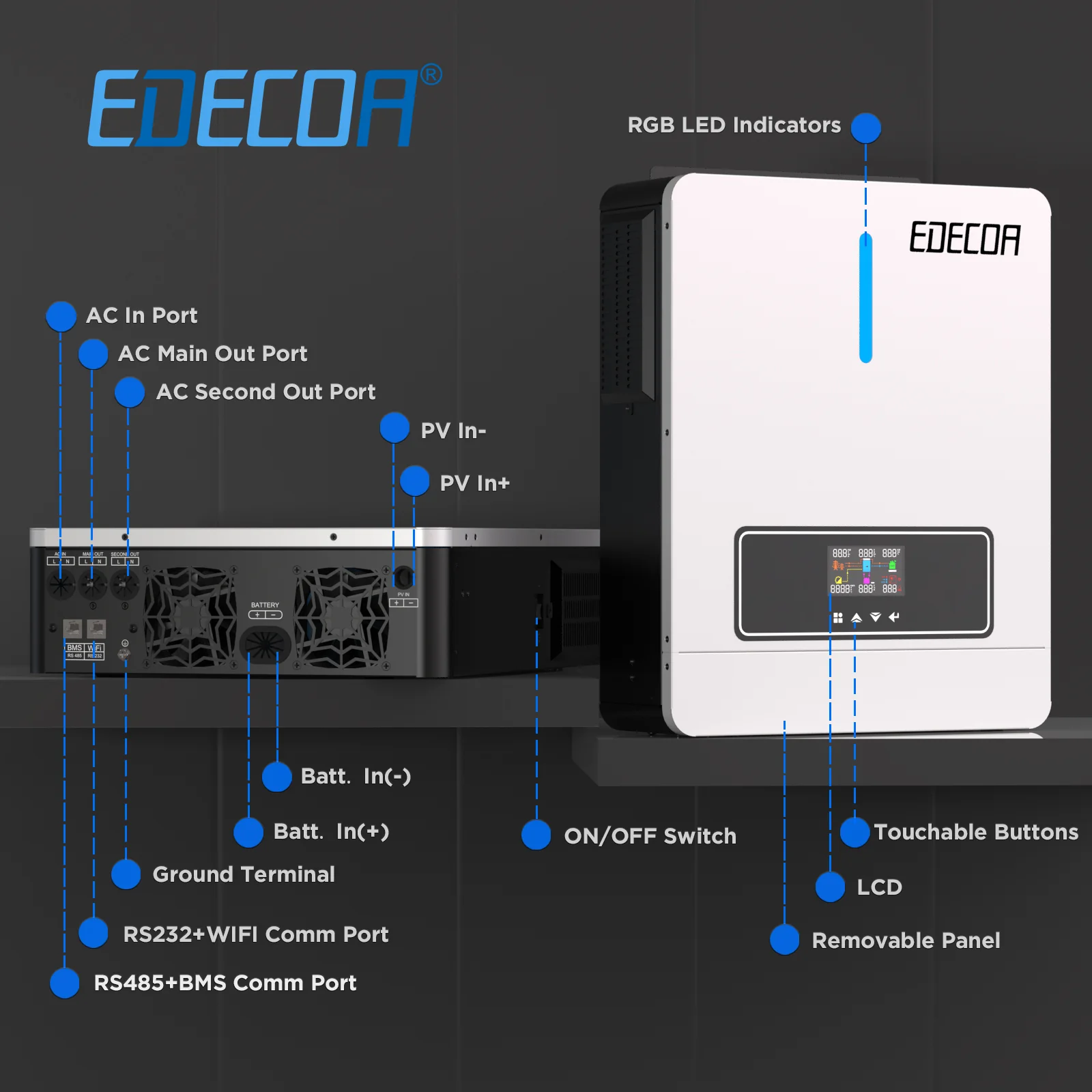

• Dual communication ports for Battery communication and Wifi communication
• Pure sine wave: provides high quality and stable AC power, protects the load, extends the service life of the appliance and has a wide range of applications.
• Wide range of uses: suitable for caravans, camping, boats, homes etc. and can be connected to a wide range of domestic and office loads.

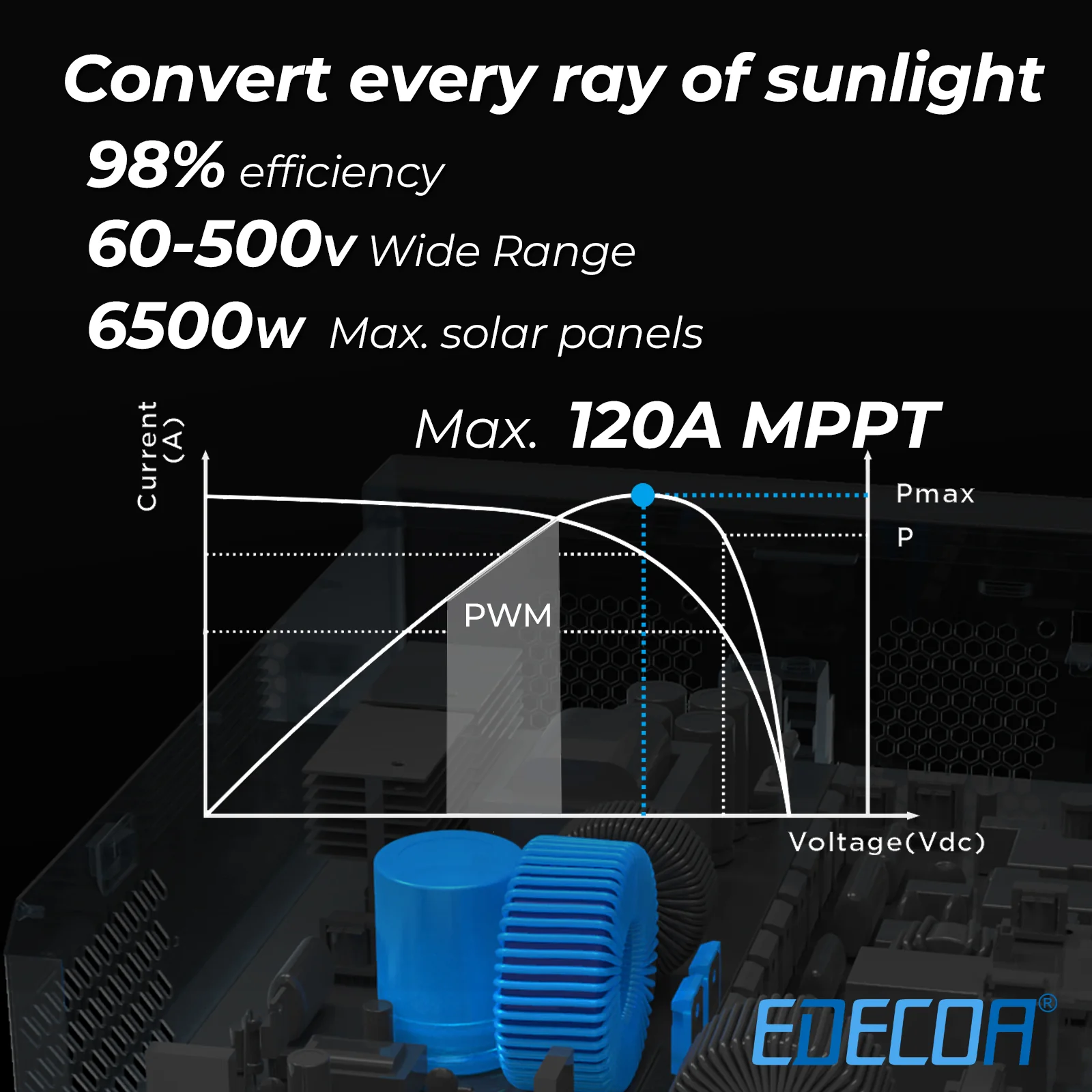

• Built-in MPPT solar charge controller: faster and more efficient charging.
• Wide PV input range: high adaptability to voltage fluctuations for stable equipment operation.

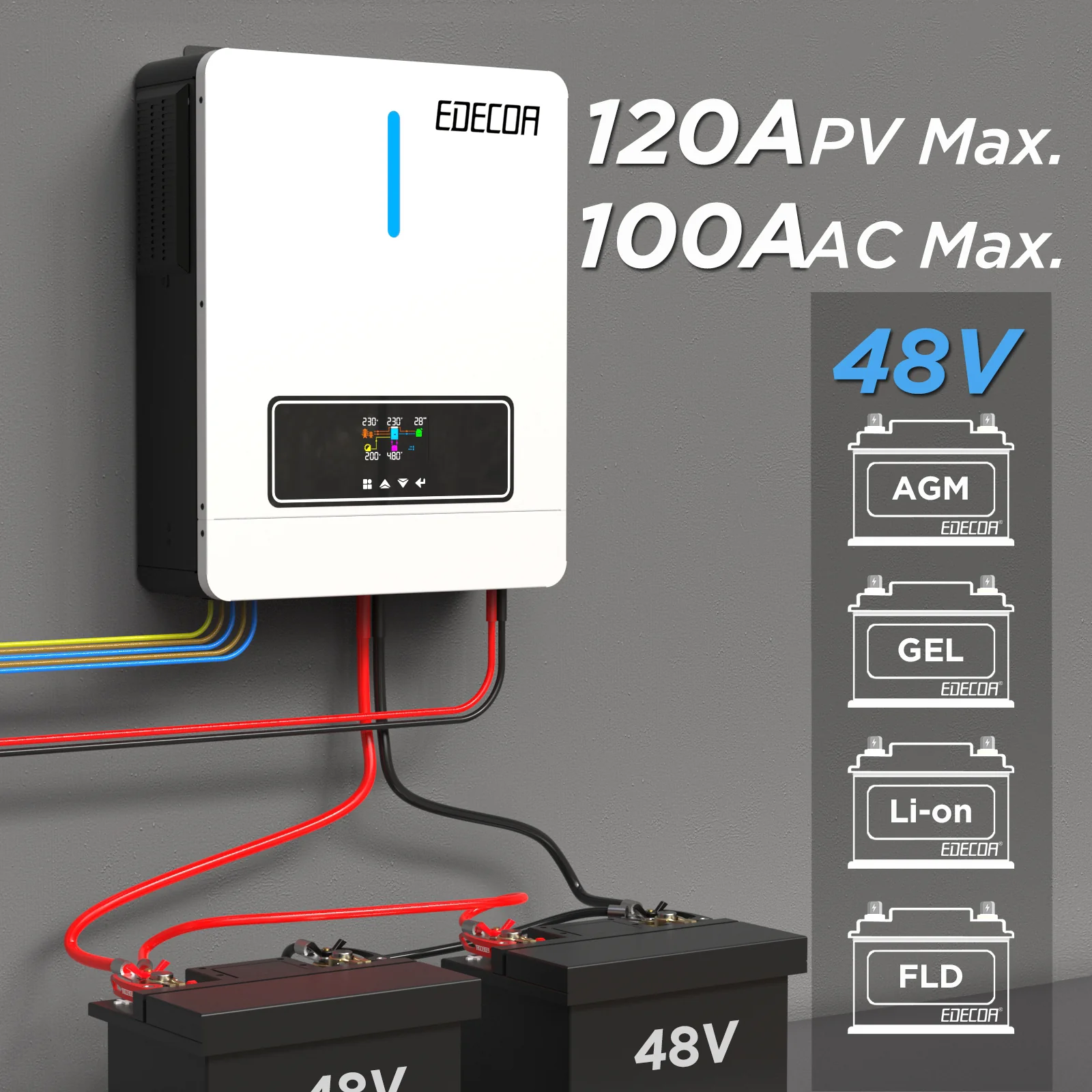

• Compatible with multiple battery types: AGM，GEL，Li-ion，FLD. Customised settings for battery type, charging voltage and current.
• Multiple charging modes: CSO/SnU/OSO
• Multiple output modes: USb/SUb/SbU/MKS
• UPS function: fast switching power supply solution to provide uninterrupted power supply if the utility/generator is disconnected or if solar charging is insufficient.
• LCD display: dynamic display of system data and operating status, setting of inverter parameters at the touch of a button.
• Multiple protections: Over loaded protection, Short loaded protection, Over Temperature Protection, Output overvoltage protection, Input undervoltage protection, Input overvoltage protection.
• Intelligent cooling function: intelligent variable speed fan, depending on the temperature of the equipment to open different cooling effect, effective heat dissipation, extend the life of the system.
• Cold start function: protects the battery and extends its life.




Specifications

Model: EG-624B

AC Input

Input Voltage Waveform: sinusoidal (Utility or generator)

Nominal Input Voltage: 230VAC

Max AC Input Voltage: 300VAC

Nominal Input Frequency: 50Hz/60Hz (Auto detection)

Efficiency(Line Mode): >95% (Rate R Load, battery full charged)

Low loss Voltage: 170VAC±10V(UPS); 90VAC±10V(Appliances)

High loss Voltage: 280VAC±10V

UPS Transfer Time: 10ms typical (UPS); 20ms typical (Appliances)

AC Output

Rated Output Power: 6200W

Output Voltage Waveform: Pure sine wave

Output Voltage Regulation: 230VAC±5%

Output Frequency: 50Hz

Peak Efficiency: 93%

Overload Protection: 3s@150% load, 5s@110%-150% load

Surge Capacity: 2*rated power for 5 seconds

Max Main Load (Dual Ouput): 6200W

Max Second Load (Battery Model): 2066W

Main Load Cut Off Voltage: 52VDC

Main Load Return Voltage: 54VDC

DC Input

Nominal DC Input Voltage: 48VDC

Cold Start Voltage: 46VDC

Low DC Warning Voltage: 42-44VDC

Low DC Warning Return Voltage: 44-45VDC

Low DC Cut-off Voltage: 40-41VDC

High DC Recovery Voltage: 62VDC

High DC Cut-off Voltage: 63VDC

No Load Power Consumption: <65W

Utility Charging Mode

Max AC Charging Current: 100A

Bulk charging Voltage:

Flooded battery: 58.4VDC

AGM/Gel battery: 56.4VDC

Float Charging Voltage: 54VDC

Solar Charging Mode

Max PV Array Power: 6500W

Max Charging Current: 120A

PV Array MPPT Voltage Range: 60-500VDC

Max PV Open Circuit Voltage: 500VDC

Max Charging Current(AC+Solar): 120A

Efficiency: 98% max

General Specification

Operation Temperature: -10°C-50°C

Storage Temperature: -15°C~60°C

Humidity: 5%-95% Relative Humidity(Non-condensing)

Dimensions (DxHxW): 442*358*116mm

Net weight: 8.9Kg
